Matcher EM-27

Matcher EM-27; CB-Master Marke; (ID = 1485103) Citizen Matcher EM-27; CB-Master Marke; (ID = 1485101) Citizen
Matcher EM-27; CB-Master Marke; (ID = 1485102) Citizen
Use red slider bar for more.
Matcher EM-27; CB-Master Marke; (ID = 1485103) Citizen
CB-Master Marke;: Matcher EM-27 [Citizen] ID = 1485103 933x762
Select picture or schematic to display from thumbnails on the right and click for download.
For model Matcher EM-27, CB-Master (Marke); Lütjensee

Country:  Germany
Manufacturer / Brand:  CB-Master (Marke); Lütjensee
Year: 1990 ?? Category: Citizen Band Equipment
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Short Wave (SW only)
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Matcher EM-27 - CB-Master Marke; Lütjensee
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85 x 55 x 80 mm / 3.3 x 2.2 x 3.1 inch
Notes

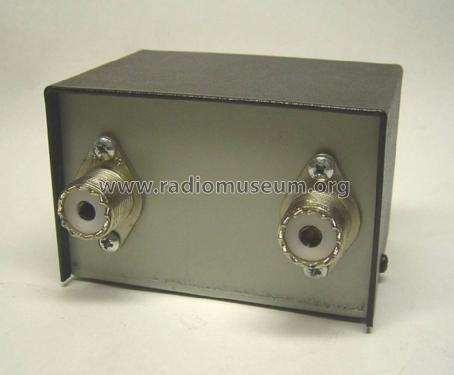

Matcher EM-27, kleine Matchbox zur Anpassung der Antenne an das Funkgerät bei schlechten Stehwellenverhältnissen für das 11Meter Band. Anschlüsse über PL-Buchsen.

Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)

Model page created by Michael Seiffert. See "Data change" for further contributors.



All listed radios etc. from CB-Master (Marke); Lütjensee
Here you find 5 models, 5 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
