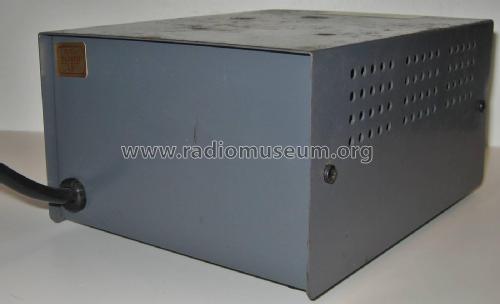

Netzgerät kurzschlussicher 13,8V
CB-Master (Marke); Lütjensee
- Country
- Germany
- Manufacturer / Brand
- CB-Master (Marke); Lütjensee
- Year
- 1992 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 340404
- Number of Transistors
- 4
- Semiconductors
- 1402E 1402E 1402E unknown_tr
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 - 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Netzgerät kurzschlussicher 13,8V - CB-Master Marke; Lütjensee
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 135 x 88 x 185 mm / 5.3 x 3.5 x 7.3 inch
- Notes
-
Kurzschlußsicheres Netzgerät, speziell für den Netzbbetrieb von CB-Funkgeräten.
Ausgangsspannung elektronisch stabilisiert (UA=13,8VDC, innen justierbar). Ausgangsstrom bis 2,5A dauernd, max. 3,5A kurzzeitig.
- Net weight (2.2 lb = 1 kg)
- 1.732 kg / 3 lb 13 oz (3.815 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
