• Year
  • 1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 82514
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: C220 Ch= 656 - CBS-Columbia Inc.; New York,
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • The CBS-COLUMBIA model C220 is a AC Operated  AM Superheterodyne Receiver With Electric Clock.

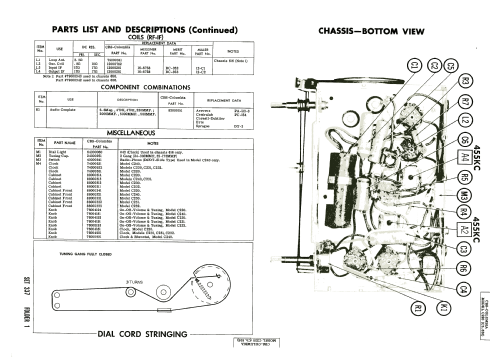

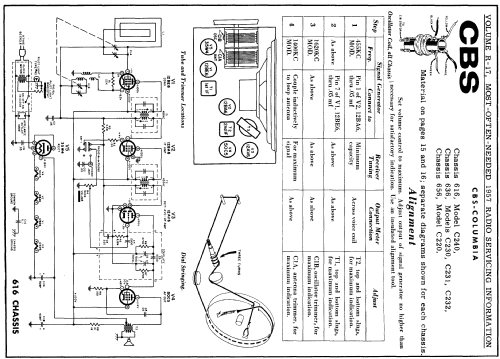

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 17, 1957
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
