• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 298215
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

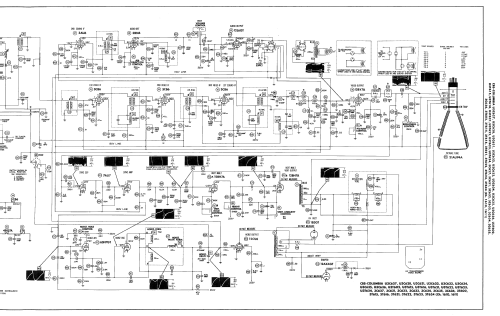

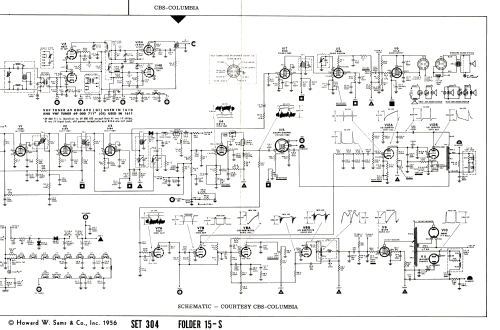

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 3T622 Ch= 1611 - CBS-Columbia Inc.; New York,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • CBS - Columbia model 3T622  is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 1611, VHF tuner 69000721 or 69000711 and picture tube 21AUP4A.



  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
