C1002-T

C1002-T ; CBS-Columbia Inc.; (ID = 524010) R-Player

C1002-T ; CBS-Columbia Inc.; (ID = 524011) R-Player
C1002-T ; CBS-Columbia Inc.; (ID = 524009) R-Player
Use red slider bar for more.
C1002-T ; CBS-Columbia Inc.; (ID = 524009) R-Player
CBS-Columbia Inc.;: C1002-T [R-Player] ID = 524009 691x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model C1002-T, CBS-Columbia Inc.; New York, NY:
Sams photofact.

Country:  United States of America (USA)
Manufacturer / Brand:  CBS-Columbia Inc.; New York, NY
alternative name

CBS Electronics || Columbia Phonographs || Columbia Records
Year: 1959 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 1: 25EH5
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: C1002-T - CBS-Columbia Inc.; New York,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Notes AC operated phono amplifier with 3 speed manual record player.

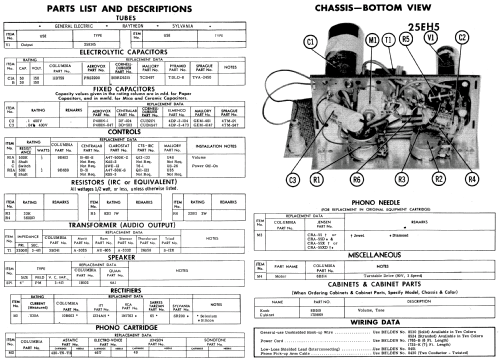

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 502 folder 6 date 10-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from CBS-Columbia Inc.; New York, NY
Here you find 334 models, 195 with images and 290 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
