C1154W

C1154W ; CBS-Columbia Inc.; (ID = 580599) R-Player

C1154W ; CBS-Columbia Inc.; (ID = 580601) R-Player

C1154W ; CBS-Columbia Inc.; (ID = 580602) R-Player

C1154W ; CBS-Columbia Inc.; (ID = 580603) R-Player
Use red slider bar for more.
C1154W ; CBS-Columbia Inc.; (ID = 580599) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  CBS-Columbia Inc.; New York, NY
alternative name

CBS Electronics || Columbia Phonographs || Columbia Records
Year: 1959 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: 12AX7 6BQ5 6BQ5 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: C1154W - CBS-Columbia Inc.; New York,

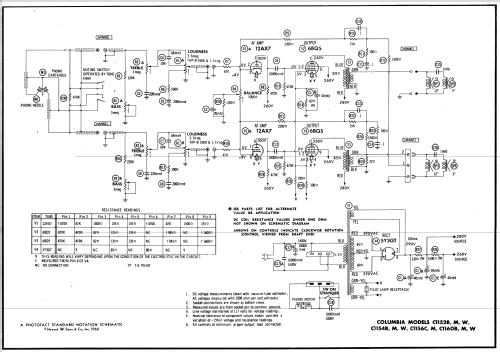

Notes AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 499 folder 6 date 9-60 features the CBS models C1152B, C1152M, C1152W, C1154B, C1154M, C1154W, C1156C, C1156M, C1160B, C1160M and C1160W as the same schematic.

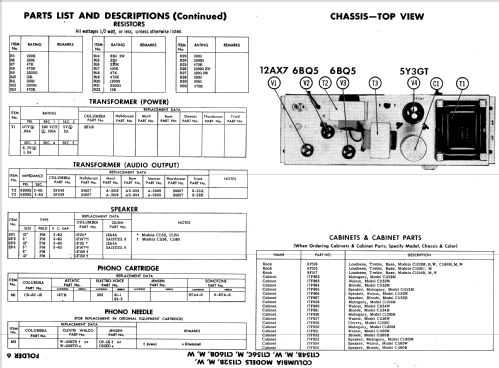

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 499 folder 6 date 9-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
