• Year
  • 1959 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 149169
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • from Radiomuseum.org
  • Model: C1160M - CBS-Columbia Inc.; New York,
  • Notes

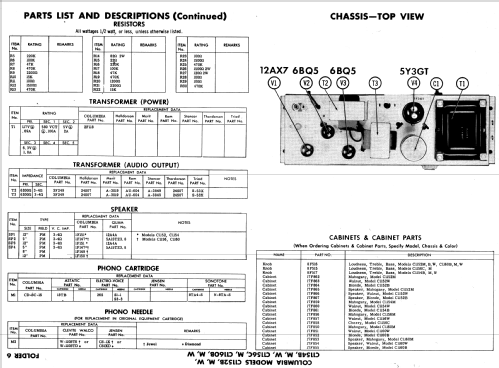

  • AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 499 folder 6 date 9-60 features the CBS models C1152B, C1152M, C1152W, C1154B, C1154M, C1154W, C1156C, C1156M, C1160B, C1160M and C1160W as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
