- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139458
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 6 Loudspeakers
- from Radiomuseum.org
- Model: C1164W - CBS-Columbia Inc.; New York,
- Notes
- AC operated AM - FM receiver with stereo amplifier and 4 speed automatic record changer. Sams photofact set 506 folder 9 date 11-60 features the CBS models C1164B, C1164M and C1164W as the same schematic.
- Literature/Schematics (1)

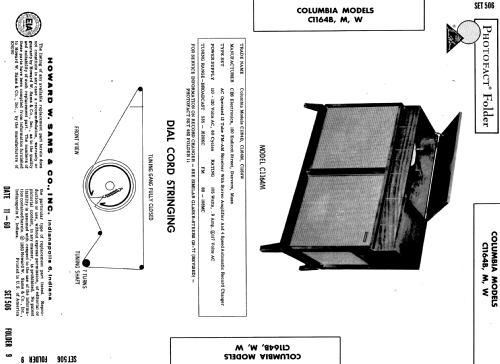

- Photofact Folder, Howard W. SAMS (Set 506 folder 9 date 11-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
