C-1010G
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
CBS Electronics || Columbia Phonographs || Columbia Records | ||||
|---|---|---|---|---|---|
| Year: 1959 ? | Category: Sound/Video Recorder and/or Player | ||||
| Valves / Tubes | 2: 50EH5 50EH5 |
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | Rec.Player+Audio.Amp+LS |
| Power type and voltage | Alternating Current supply (AC) / 110 - 120 Volt |
| Loudspeaker | 2 Loudspeakers / Ø 5 inch = 12.7 cm |
| Power out | |
| from Radiomuseum.org | Model: C-1010G - CBS-Columbia Inc.; New York, |
| Shape | Tablemodel, with any shape - general. |
| Notes | AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 501 folder 4 date 10-60 features the CBS models C-1010G and C-1010T as the same schematic. |

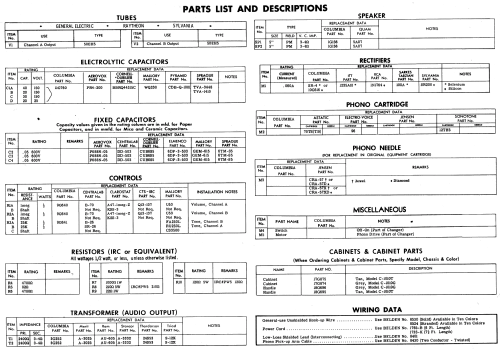

| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Set 501 folder 4 date 10-60) |
Model page created by Peter Hoddow. See "Data change" for further contributors.
