• Year
  • 1959 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 140042
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 5 inch = 12.7 cm
  • from Radiomuseum.org

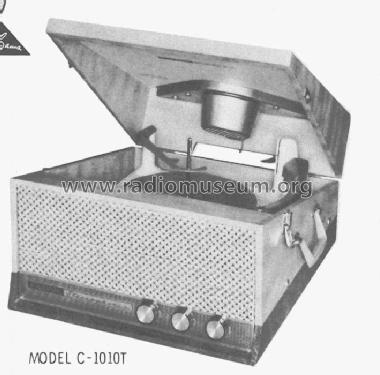

  • Model: C-1010T - CBS-Columbia Inc.; New York,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

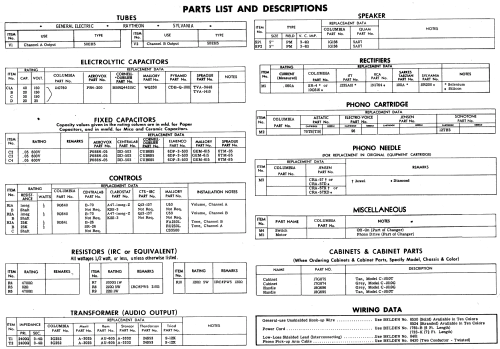

  • AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 501 folder 4 date 10-60 features the CBS models C-1010G and C-1010T as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
