C-1012G

C-1012G ; CBS-Columbia Inc.; (ID = 523243) Ampl/Mixer

C-1012G ; CBS-Columbia Inc.; (ID = 523244) Ampl/Mixer

C-1012G ; CBS-Columbia Inc.; (ID = 523245) Ampl/Mixer

C-1012G ; CBS-Columbia Inc.; (ID = 523246) Ampl/Mixer
Use red slider bar for more.
C-1012G ; CBS-Columbia Inc.; (ID = 523243) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  CBS-Columbia Inc.; New York, NY
alternative name

CBS Electronics || Columbia Phonographs || Columbia Records
Year: 1959 ? Category: Audio Amplifier or -mixer
Valves / Tubes 3: 12AX7 50C5 50C5
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: C-1012G - CBS-Columbia Inc.; New York,
Notes AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 503 folder 7 date 10-60 features the CBS models C-1012B, C-1012G, C-1148B, C-1148M and C-1148W as the same schematic.

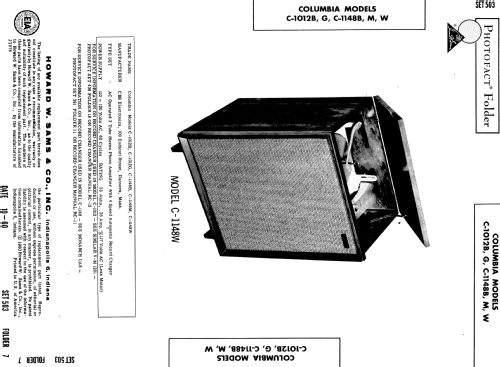

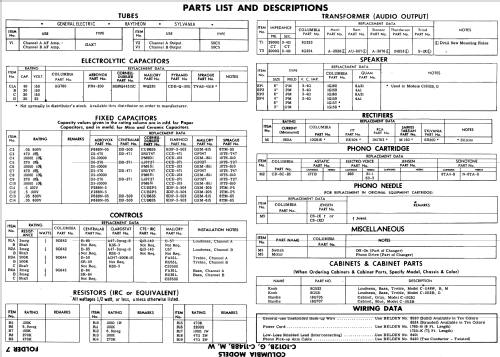

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 503 folder 7 date 10-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
