• Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139962
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

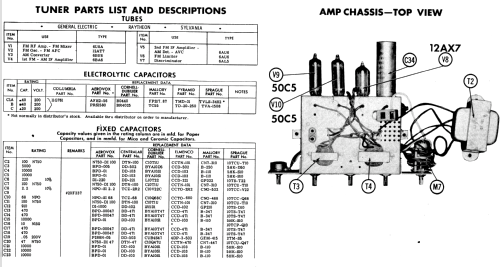

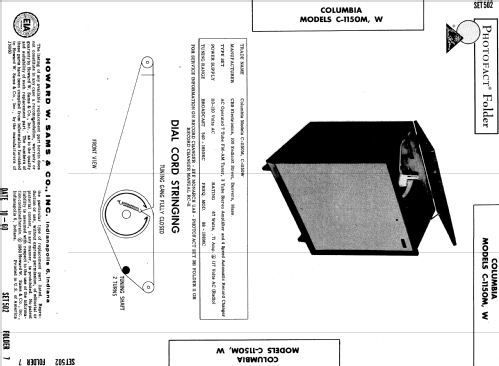

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • from Radiomuseum.org
  • Model: C-1150M - CBS-Columbia Inc.; New York,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • AC operated AM - FM tuner, stereo amplifier and 4 speed automatic record changer. Sams photofact set 502 folder 7 date 10-60 features the CBS models C-1150M and C- 1150W as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
