• Country
• United States of America (USA)

• Manufacturer / Brand
• CBS-Columbia Inc.; New York, NY

• Year
• 1953 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 231901

• • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

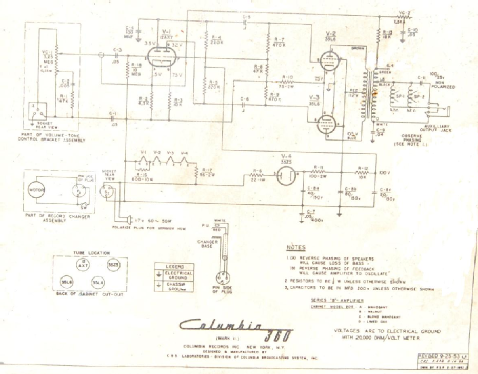

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 35L6 35L6 35Z5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Columbia 360 Series "B" Mark II - CBS-Columbia Inc.; New York,

• Shape

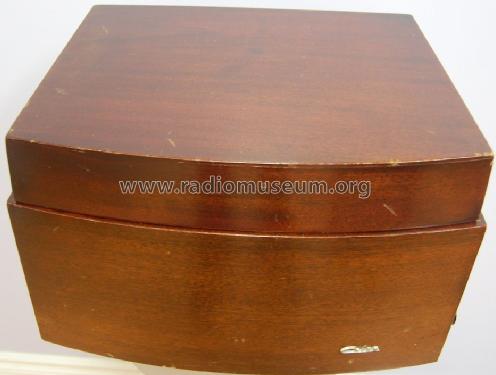

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 17 x 10.75 x 13.75 inch / 432 x 273 x 349 mm

• Notes

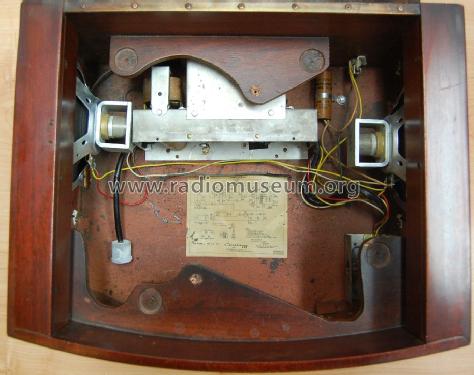

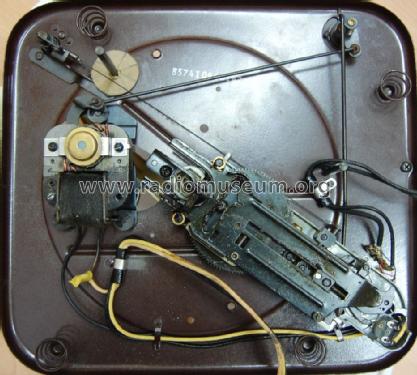

• Columbia model 360 Series "B" is an AC operated phono amplifier with 3 speed automatic record player. The Columbia 360 Mark II model comes with a V-M (Voice of Music) Model 951 "Tri-O-Matic" 3 speed record changer and a 4 tube push-pull phono amplifier.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 215, folder 5, dated 9-53)

• Author
• Model page created by George Papaiz. See "Data change" for further contributors.
