Columbia-Bell & Howell 355

• Country
• United States of America (USA)

• Manufacturer / Brand
• CBS-Columbia Inc.; New York, NY

• Year
• 1955 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 329178

• • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

• Picture

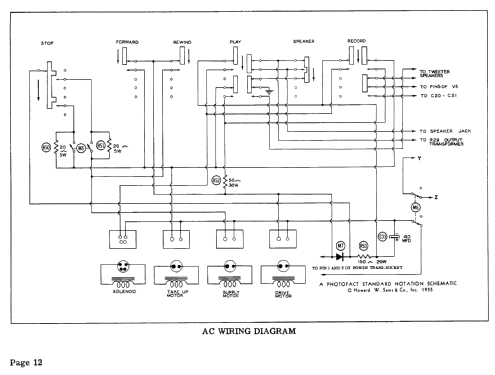

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 12AT7 12AU7 6AQ5 6AQ5 12AU7 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 115 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Various materials

• from Radiomuseum.org
• Model: Columbia-Bell & Howell 355 - CBS-Columbia Inc.; New York,

• Shape
• Tablemodel, with any shape - general.

• Notes

• The model 355 Columbia Bell & Howell tape recorder features stop, forward, rewind, play, and record modes of operation merely by pressing a button. A speaker push button is also provided for monitoring programs or for using the recorder as a P.A. system.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 292 Folder 4 dated 10-55)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
