• Country
• United States of America (USA)

• Manufacturer / Brand
• CBS-Columbia Inc.; New York, NY

• Year
• 1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 145275

• • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Columbia Records 517 - CBS-Columbia Inc.; New York,

• Shape
• Tablemodel, with any shape - general.

• Notes

• The CBS Model Columbia Records 517 is an AC operated 3 tube phono amplifier with 4-speed automatic record changer.



• Literature/Schematics (1)

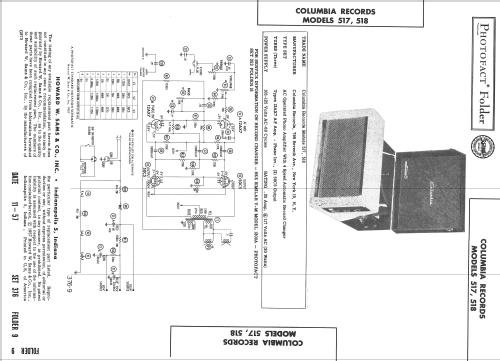

• Photofact Folder, Howard W. SAMS (Set 376 Folder 9 dated 11-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
