• Country
• United States of America (USA)

• Manufacturer / Brand
• CBS-Columbia Inc.; New York, NY

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81482

• • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

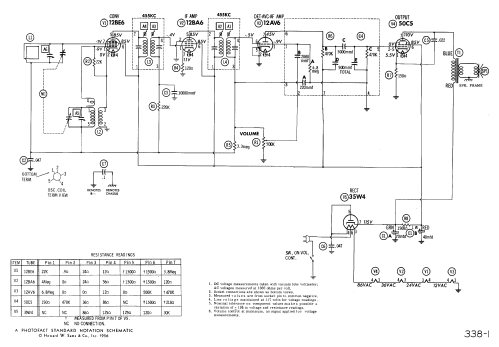

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: T204 Ch= 216 - CBS-Columbia Inc.; New York,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9.5 x 6 x 6.5 mm / 0.4 x 0.2 x 0.3 inch

• Notes
• The CBS-Columbia models T200, T201, T202, T203 and T204 use the chassis 216 (Photofact Date 11-56, set 338, folder 1). They are AC-DC operated AM superheterodyne receivers with a built in loop antenna. We believe that these models represent only different colors. The T200 is in any case in Green and the T204 in "dark brownish pink". It seems that according to a back cover seen T204 has also been sold as Model 2160 or 2160-T204.

• Source of data
• Beitman Radio Diagrams, Vol. 16, 1956

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 11-56, set 338, folder 1)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
