The Stratford 5C603 Ch= 1621

CBS-Columbia Inc.; New York, NY

  • Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 128212
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

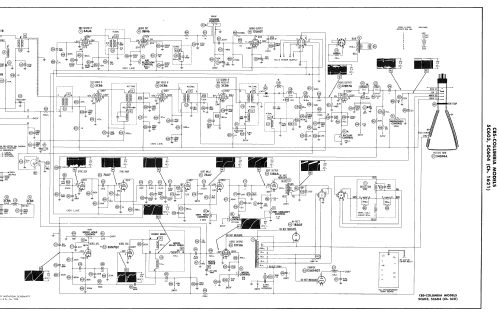

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: The Stratford 5C603 Ch= 1621 - CBS-Columbia Inc.; New York,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

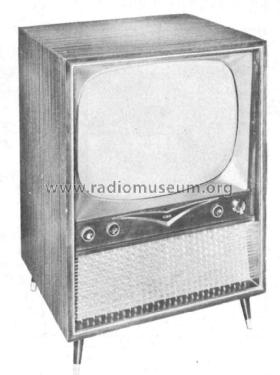

  • CBS-Columbia model 5C603 is a 24" b/w TV with US standard VHF Cascode Turret tuner. Equipped with a Built-in antenna, chassis 1621 and picture tube 24DP4A . Turnabout base available. Mahogany finish.


  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
