Ditton 130

Ditton 130; Celestion Radio also (ID = 1611919) Speaker-P Ditton 130; Celestion Radio also (ID = 1611920) Speaker-P
Ditton 130; Celestion Radio also (ID = 1611921) Speaker-P Ditton 130; Celestion Radio also (ID = 1611922) Speaker-P
Ditton 130; Celestion Radio also (ID = 1611923) Speaker-P Ditton 130; Celestion Radio also (ID = 1611924) Speaker-P
Ditton 130; Celestion Radio also (ID = 1611925) Speaker-P
Use red slider bar for more.
Ditton 130; Celestion Radio also (ID = 1611919) Speaker-P

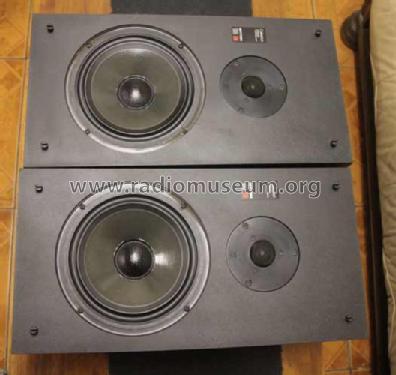

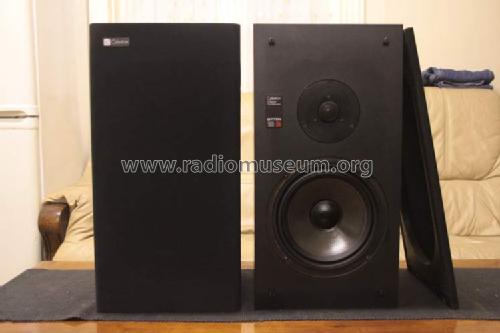

Celestion Radio also: Ditton 130 [Speaker-P] ID = 1611919 750x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ditton 130, Celestion Radio (also brand); Kingston-on-Thames

Country:  Great Britain (UK)
Manufacturer / Brand:  Celestion Radio (also brand); Kingston-on-Thames
Year: 1980 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Ditton 130 - Celestion Radio also brand;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 485 x 250 x 240 mm / 19.1 x 9.8 x 9.4 inch
Notes

Diton 130.
Frequency Response: 60Hz to 20kHz.
Recommended Amplifier: 10 to 50W.
Crossover Frequency: 2300Hz.
Impedance: 8Ω.
Sensitivity: 87dB

Net weight (2.2 lb = 1 kg) 9.4 kg / 20 lb 11.3 oz (20.705 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.



All listed radios etc. from Celestion Radio (also brand); Kingston-on-Thames
Here you find 20 models, 19 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
