TV Sound Adaptor Telefi

TV Sound Adaptor Telefi ; Celestion Radio also (ID = 904812) Misc
Use red slider bar for more.
TV Sound Adaptor Telefi ; Celestion Radio also (ID = 904812) Misc

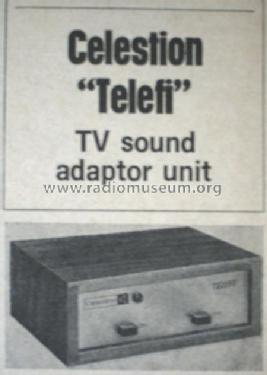

Celestion Radio also: TV Sound Adaptor Telefi [Misc] ID = 904812 450x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model TV Sound Adaptor Telefi, Celestion Radio (also brand); Kingston-on-Thames:
Trader Service Sheet 1974

Country:  Great Britain (UK)
Manufacturer / Brand:  Celestion Radio (also brand); Kingston-on-Thames
Year: 1974 Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 9: BC148 BC158 BC158 BF194 1N4002 1N4002 1N4148 1N4148 1N4148
Main principle Super-Heterodyne (Super in general)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - - No sound reproduction output.
Power out 2 W (unknown quality)
from Radiomuseum.org Model: TV Sound Adaptor Telefi - Celestion Radio also brand;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 190 x 73 x 136 mm / 7.5 x 2.9 x 5.4 inch
Notes 1 IC, Radio In, Radio/Tv out. Made in UK.
Literature/Schematics (1) Trader Service Sheet 1974

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
