• Country
• France

• Manufacturer / Brand
• Centrad; Annecy

• Year
• 1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 121539

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• ECF80 ECF80 ECC85 ECF80 ECC85 ECF80 ECF80 6AU6 DG7-32-01

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

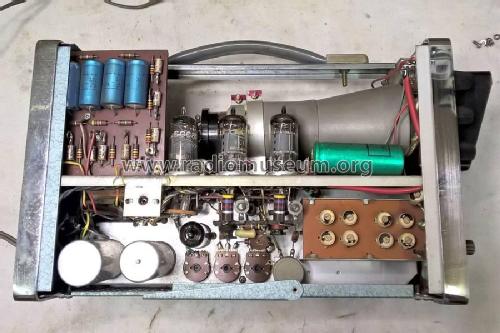

• Model: Oscilloscope 276 A - Centrad; Annecy

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 130 x 180 x 327 mm / 5.1 x 7.1 x 12.9 inch

• Notes
• 7 cm CRT, single channel, up to 3 MHz, time 20 mS - 5 µS.

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Price in first year of sale
• 1,265.00 F

• Mentioned in
• FR "Television" No 169 Dec. 1966

• Author
• Model page created by a member from A. See "Data change" for further contributors.
