• Country
• France

• Manufacturer / Brand
• Central des Ondes, Les Radioélectriciens de France; Paris

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321676

• Number of Tubes
• 6

• Valves / Tubes
• 58 58 58 2B7 47 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 275 - Central des Ondes, Les

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 363 x 450 x 280 mm / 14.3 x 17.7 x 11 inch

• Notes

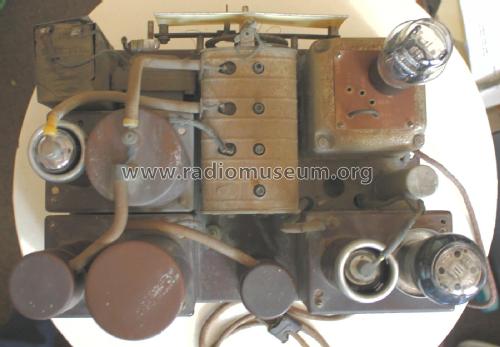

• Montage spécial par blocs amovibles permettant la transformation du récepteur.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 1,790.00 FRF

• Mentioned in
• -- Original prospect or advert (L'Ouest Éclair, 16.12.1934)

• Author
• Model page created by Philippe Harang. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Central des Ondes, Les Radioélectriciens de France; Paris
