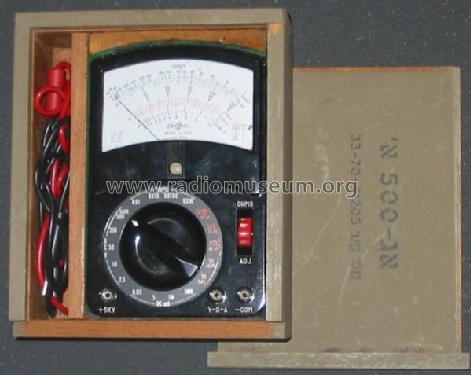

Vielfachmessinstrument CT-500

Vielfachmessinstrument CT-500; Central; where? (ID = 615406) Equipment
Vielfachmessinstrument CT-500; Central; where? (ID = 458656) Equipment Vielfachmessinstrument CT-500; Central; where? (ID = 458658) Equipment
Use red slider bar for more.
Vielfachmessinstrument CT-500; Central; where? (ID = 458656) Equipment
Central; where?: Vielfachmessinstrument CT-500 [Equipment] ID = 458656 475x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vielfachmessinstrument CT-500, Central; (where?)

Country:  Japan
Manufacturer / Brand:  Central; (where?)
Year: 1960 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Vielfachmessinstrument CT-500 - Central; where?
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 94 x 142 x 42 mm / 3.7 x 5.6 x 1.7 inch
Notes Vielfachmessinstrument. Diverse Gleich- und Wechselspannungsbereiche, vier Gleichstrom- und Widerstandsbereiche.
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Source of data - - Data from my own collection

Model page created by Otto Frosinn. See "Data change" for further contributors.
