761V Typ 109

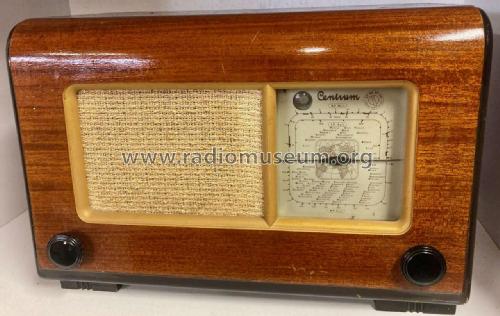

761V Typ 109; Centrum-Radio, (ID = 15631) Radio
Use red slider bar for more.
761V Typ 109; Centrum-Radio, (ID = 15631) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6J8EG 6K7GT 6Q7GT 6V6EG 6U5 5Y3G
Main principle Superheterodyne (common); ZF/IF 490 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 761V Typ 109 - Centrum-Radio, Gylling & Co.;
Notes

The information about the employment of magic eyes seems to be wrong: 761LV should have 6 tubes while 752 should have 5 tubes. The difference is in the missing magic eye.

External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
