DW2

DW2; Centrum-Radio, (ID = 1630097) Radio
Use red slider bar for more.
DW2; Centrum-Radio, (ID = 1630097) Radio

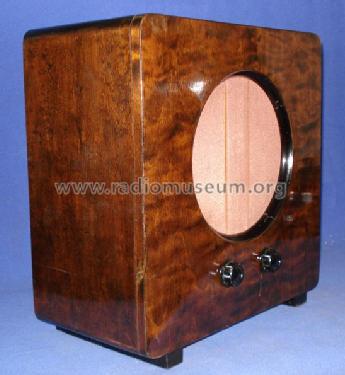

Centrum-Radio,: DW2 [Radio] ID = 1630097 548x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model DW2, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1932 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E438 RGN1064 unknown_Tube
Main principle TRF with regeneration
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: DW2 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 325 x 345 x 180 mm / 12.8 x 13.6 x 7.1 inch
Notes

Unknown = possible AL4

Model page created by Torbjörn Hansson. See "Data change" for further contributors.



All listed radios etc. from Centrum-Radio, Gylling & Co.; Stockholm
Here you find 180 models, 132 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
