HW4 Typ 39

HW4 Typ 39; Centrum-Radio, (ID = 2320881) Radio

HW4 Typ 39; Centrum-Radio, (ID = 2320882) Radio
HW4 Typ 39; Centrum-Radio, (ID = 2318892) Radio HW4 Typ 39; Centrum-Radio, (ID = 2318893) Radio
HW4 Typ 39; Centrum-Radio, (ID = 2318891) Radio HW4 Typ 39; Centrum-Radio, (ID = 2318894) Radio
HW4 Typ 39; Centrum-Radio, (ID = 2318917) Radio HW4 Typ 39; Centrum-Radio, (ID = 2318896) Radio
HW4 Typ 39; Centrum-Radio, (ID = 1481865) Radio HW4 Typ 39; Centrum-Radio, (ID = 1481866) Radio
HW4 Typ 39; Centrum-Radio, (ID = 1481867) Radio HW4 Typ 39; Centrum-Radio, (ID = 2339539) Radio
Use red slider bar for more.
HW4 Typ 39; Centrum-Radio, (ID = 2318892) Radio

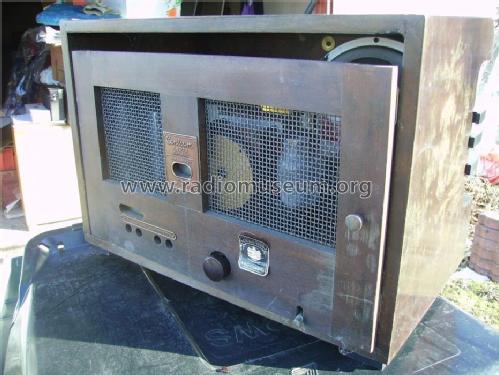

Centrum-Radio,: HW4 Typ 39 [Radio] ID = 2318892 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model HW4 Typ 39, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6D6 6B5 80
Main principle Superhet, IF regeneration; ZF/IF 480 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 120; 130; 140; 150; 210; 220; 230; 240; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: HW4 Typ 39 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Centrum Radio model HW4 is an AC operated 4-tube 3-band superheterodyne receiver.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Aglef Tröger. See "Data change" for further contributors.



All listed radios etc. from Centrum-Radio, Gylling & Co.; Stockholm
Here you find 180 models, 132 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
