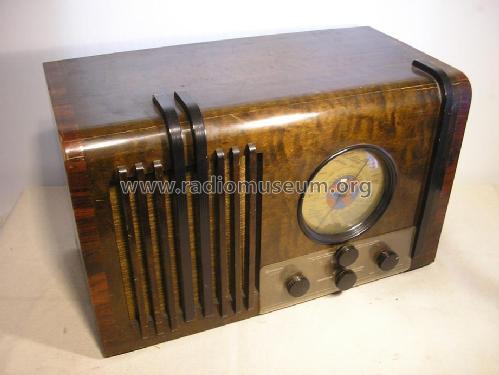

HW8; Centrum-Radio, (ID = 1292907) Radio HW8; Centrum-Radio, (ID = 1292908) Radio

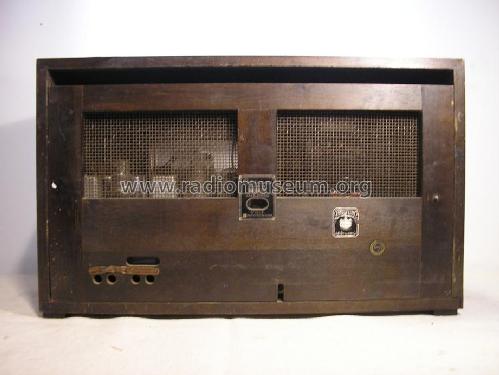

HW8; Centrum-Radio, (ID = 1292909) Radio HW8; Centrum-Radio, (ID = 1292910) Radio

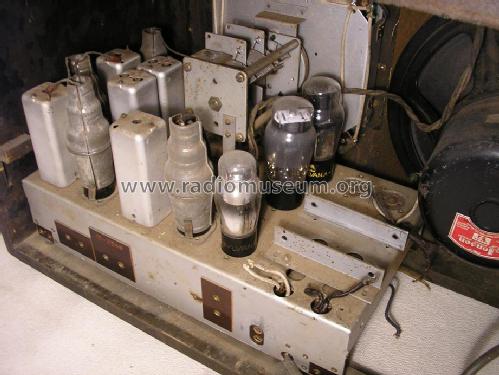

HW8; Centrum-Radio, (ID = 1292911) Radio HW8; Centrum-Radio, (ID = 1292912) Radio
Use red slider bar for more.

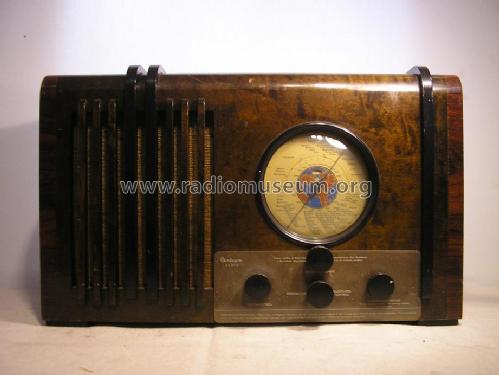

HW8; Centrum-Radio, (ID = 1292905) Radio
Centrum-Radio,: HW8 [Radio] ID = 1292905 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model HW8, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6F6EG 6F6G 75 6D6 6C5G 6D6 6A7 80
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: HW8 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 582 x 365 x 310 mm / 22.9 x 14.4 x 12.2 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Centrum-Radio, Gylling & Co.; Stockholm
Here you find 180 models, 132 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
