KU6

Centrum-Radio, Gylling & Co.; Stockholm

Data
Forum
Pictures
Collections

  • Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 324911
    • Brand: Gylling

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • AC/DC-set / 115; 130; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: KU6 - Centrum-Radio, Gylling & Co.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 567 x 330 x 355 mm / 22.3 x 13 x 14 inch
  • Notes

  • SW1: 3.8 - 10.0 MHz
    SW2: 10.0 - 23.0 MHz

    Model KW6 is the AC version of this receiver.

  • Price in first year of sale
  • 325.00 SEK
  • Mentioned in
  • -- Original prospect or advert (Svensk Damtidning Nr. 37, 16.09.193)
  • Literature/Schematics (1)

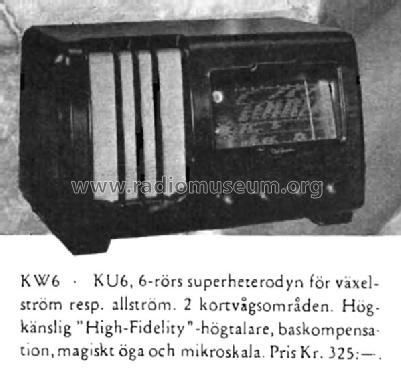

  • -- Original prospect or advert (Populär Radio, 9/1939)
