KW5 Typ 51

KW5 Typ 51; Centrum-Radio, (ID = 1676905) Radio

KW5 Typ 51; Centrum-Radio, (ID = 1676906) Radio

KW5 Typ 51; Centrum-Radio, (ID = 1676907) Radio
KW5 Typ 51; Centrum-Radio, (ID = 1567588) Radio KW5 Typ 51; Centrum-Radio, (ID = 1567589) Radio
KW5 Typ 51; Centrum-Radio, (ID = 1567590) Radio KW5 Typ 51; Centrum-Radio, (ID = 1567591) Radio
KW5 Typ 51; Centrum-Radio, (ID = 1567592) Radio KW5 Typ 51; Centrum-Radio, (ID = 1567593) Radio
KW5 Typ 51; Centrum-Radio, (ID = 1567594) Radio KW5 Typ 51; Centrum-Radio, (ID = 1567595) Radio
KW5 Typ 51; Centrum-Radio, (ID = 2589361) Radio
Use red slider bar for more.
KW5 Typ 51; Centrum-Radio, (ID = 1567588) Radio
Centrum-Radio,: KW5 Typ 51 [Radio] ID = 1567588 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model KW5 Typ 51, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner

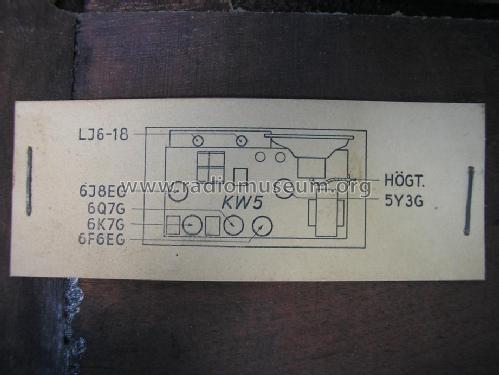

Valves / Tubes 5: 6J8EG 6K7G 6Q7G 6F6EG 5Y3G
Main principle Superheterodyne (common); ZF/IF 480 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115; 130; 150; 210; 225; 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out 2 W (undistorted)
from Radiomuseum.org Model: KW5 Typ 51 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 300 x 280 mm / 18.5 x 11.8 x 11 inch
Notes

SW 1: 13.6...30 m
SW 2: 30...85 m

Variable bandwidth.

Model KU5 is the AC/DC version of this receiver.

Price in first year of sale 265.00 SEK

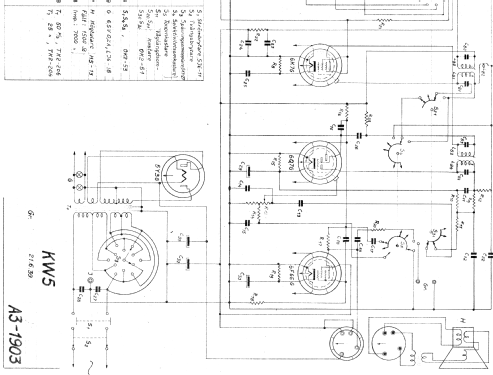

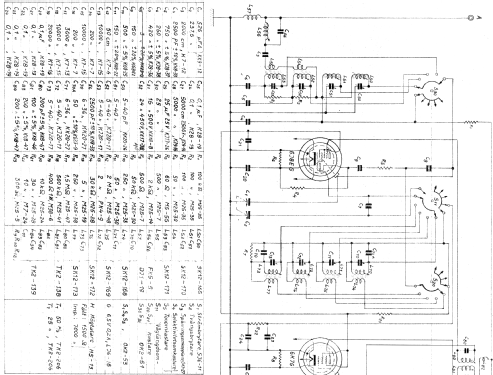

Mentioned in -- Schematic

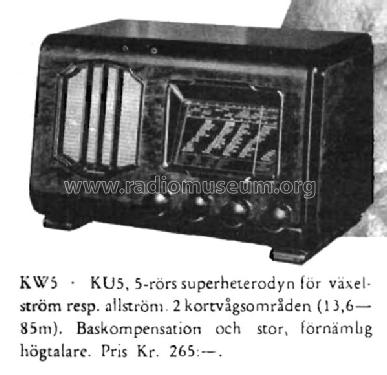

Literature/Schematics (1) -- Original prospect or advert (Svensk Damtidning Nr. 37, 16.09.1939)
Literature/Schematics (2) -- Original prospect or advert (Populär Radio, 9/1939)

Model page created by Timo Rantasaari. See "Data change" for further contributors.
