President PU6

President PU6; Centrum-Radio, (ID = 1439832) Radio

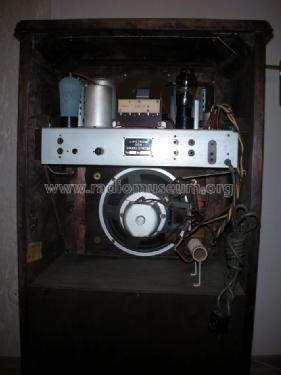

President PU6; Centrum-Radio, (ID = 1548408) Radio President PU6; Centrum-Radio, (ID = 1560950) Radio
President PU6; Centrum-Radio, (ID = 1560996) Radio
Use red slider bar for more.
President PU6; Centrum-Radio, (ID = 1548408) Radio
Centrum-Radio,: President PU6 [Radio] ID = 1548408 636x930
Select picture or schematic to display from thumbnails on the right and click for download.
For model President PU6, Centrum-Radio, Gylling & Co.; Stockholm:
Bild von eigenem Gerät

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: W30 X30 W30 DH30 N30 U30
Main principle Superhet with RF-stage; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21.5 cm = 8.5 inch
Power out
from Radiomuseum.org Model: President PU6 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 470 x 1040 x 320 mm / 18.5 x 40.9 x 12.6 inch
Notes

Gerät gibt es auch in Wechselstromausführung, siehe Typ PW6.

Source of data -- Schematic

Model page created by Jan Peter Brömme. See "Data change" for further contributors.
