U94

U94; Centrum-Radio, (ID = 1708900) Radio U94; Centrum-Radio, (ID = 1708901) Radio
U94; Centrum-Radio, (ID = 1708902) Radio U94; Centrum-Radio, (ID = 1708598) Radio

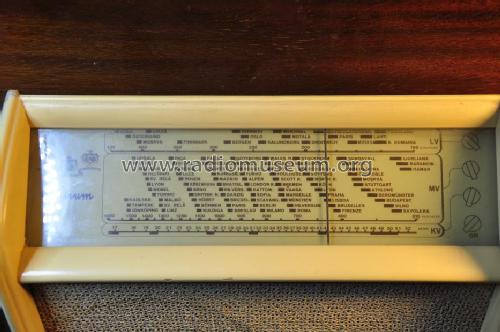

U94; Centrum-Radio, (ID = 1708597) Radio
Use red slider bar for more.
U94; Centrum-Radio, (ID = 1708900) Radio
Centrum-Radio,: U94 [Radio] ID = 1708900 933x687
Select picture or schematic to display from thumbnails on the right and click for download.
For model U94, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6U7G 6Q7G 25L6G 25Z6GT
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 115; 130; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: U94 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 490 x 340 x 265 mm / 19.3 x 13.4 x 10.4 inch
Net weight (2.2 lb = 1 kg) 8.8 kg / 19 lb 6.1 oz (19.383 lb)

Model page created by Ola Gröndalen. See "Data change" for further contributors.



All listed radios etc. from Centrum-Radio, Gylling & Co.; Stockholm
Here you find 180 models, 132 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
