- Country
- United States of America (USA)
- Manufacturer / Brand
- Cerwin-Vega Inc.; Los Angeles
- Year
- 1975 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 366521
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

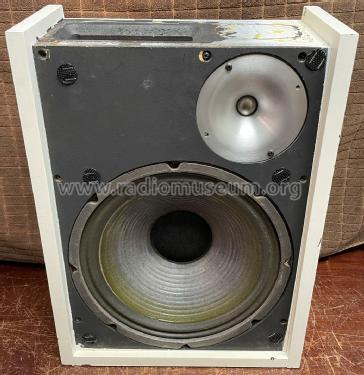

- Model: 320MT - Cerwin-Vega Inc.; Los Angeles
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 19.75 x 14.12 x 6.75 inch / 502 x 359 x 171 mm
- Notes
-
- 3-way speaker with Cerwin-Vega 123ER 12" woofer, Heppner HF-91 mid frequency horn and Sound Dynamics HL-C-01SD 5" round aluminum horn tweeter
- 150Hz to 20KHz range with adjustment through Aetna-Pollack wirewound ceramic potentiometers
- circuit breaker for mid and high frequency drivers protection
- 8 ohms
- Net weight (2.2 lb = 1 kg)
- 30 lb (30 lb 0 oz) / 13.620 kg
- Author
- Model page created by George Papaiz. See "Data change" for further contributors.
