• Country
• Great Britain (UK)

• Manufacturer / Brand
• Champion Electric, Newhaven / Seaford

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127588

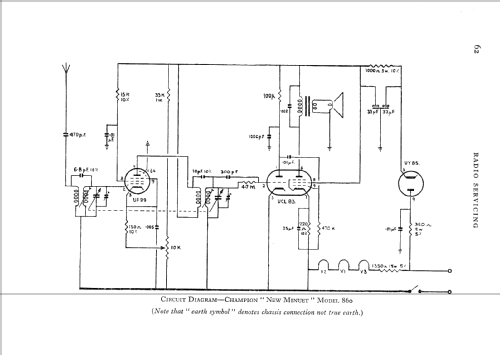

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UF89 UCL83 UY85

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: New Minuet 860 - Champion Electric, Newhaven /

• Notes
• Small transportable cabinet.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Paul Stennings CD Vol 2

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
