- Country
- United States of America (USA)
- Manufacturer / Brand
- Channel Master Corp.; USA
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153952
front view swiveled right

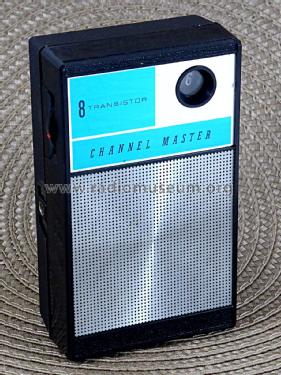

Frontal view
front view swiveled left
Leather carrying case
Back view
Interior view

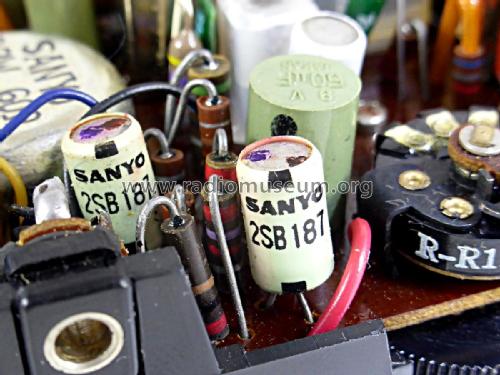

Sanyo transistors on PCB
Black plastic with Aluminum trim
Shown in black leather case
Catalog 1968
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 6457 - Channel Master Corp.; USA
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.4 x 4.1 x 1.3 inch / 61 x 104 x 33 mm
- Notes
-
Channel Master 6457;
Sold with accessories: Carrying case and strap, earphone with leather pouch, US$ 10.95Made in Hong Kong, many parts marked Sanyo, Japan.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by a member from A. See "Data change" for further contributors.
