Swing Along 6550
Channel Master Corp.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Channel Master Corp.; USA
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 163244
Ebay User barrysoldstuff Item 200735701555
Photofact Folder, Howard W. SAMS
Ebay User barrysoldstuff Item 200735701555
Ebay User barrysoldstuff Item 200735701555
Ebay User barrysoldstuff Item 200735701555
Ebay User barrysoldstuff Item 200735701555
Ebay User barrysoldstuff Item 200735701555
Ebay User barrysoldstuff Item 200735701555
Ebay User barrysoldstuff Item 200735701555
Channel Master Sales Brochure
Channel Master Sales Brochure
Channel Master Sales Brochure
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.75 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Swing Along 6550 - Channel Master Corp.; USA
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9 x 9.5 x 4 inch / 229 x 241 x 102 mm
- Notes
-

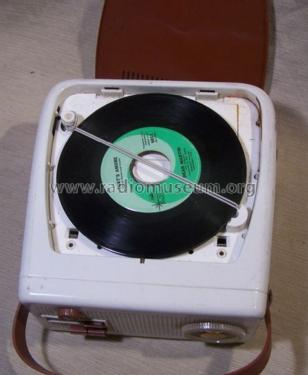

Channel Master AM Radio and 45 rpm Phonograph Model Swing Along 6550.
It has storage on one side for records and the player is built into the other side. The record player drives the record with a rubber wheel applied to the edge of the record.Made in Western Germany.
- Source of data
- Photofact Folder, Howard W. SAMS
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by a member from A. See "Data change" for further contributors.
