Bloc Ohmmètre à Magnéto No. 1

Chauvin & Arnoux; Paris

  • Year
  • 1933
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 301400

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Solar- and/or muscle driven, also addl. power jack possible
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Bloc Ohmmètre à Magnéto No. 1 - Chauvin & Arnoux; Paris
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 170 x 185 x 140 mm / 6.7 x 7.3 x 5.5 inch
  • Notes
  • Ommètre destiné aux mesures rapides des grandes résistances et la vérification des isolements par rotation d'une manivelle à vitesse quelconque. L'appareil comporte deux sensibilités commutables par poussoir :

    • bouton noir, lecture directe : de 0 (200 ohms) à 50 mégohms
    • bouton rouge, division 1/10 : de 0 (200 ohms) à 5 mégohms

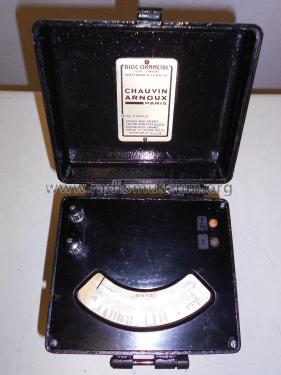

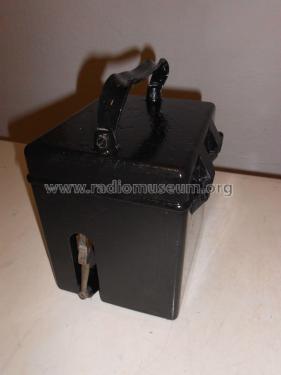

    Cadran à miroir. Boîtier métallique, laqué noir. Manivelle rentrante.

    À noter : dans les années 1920 et 1930, il était courant de specifier la plage de mesure mégaohm avec l'unité ohm (Ω). Cet appareil ne mesure que mégohms.

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Price in first year of sale
  • 1,195.00 FRF
  • Mentioned in

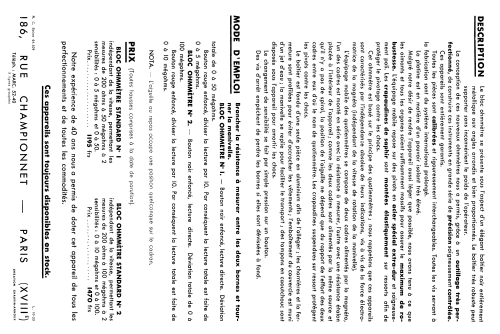

  • - - Manufacturers Literature (Notice 208, 1933)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
