Polymètre 24 (Multimètre)

Polymètre 24 ; Chauvin & Arnoux; (ID = 1454723) Equipment Polymètre 24 ; Chauvin & Arnoux; (ID = 1454721) Equipment
Polymètre 24 ; Chauvin & Arnoux; (ID = 1454722) Equipment Polymètre 24 ; Chauvin & Arnoux; (ID = 1454724) Equipment
Polymètre 24 ; Chauvin & Arnoux; (ID = 1596799) Equipment Polymètre 24 ; Chauvin & Arnoux; (ID = 1596800) Equipment
Polymètre 24 ; Chauvin & Arnoux; (ID = 1741703) Equipment
Use red slider bar for more.
Polymètre 24 ; Chauvin & Arnoux; (ID = 1454723) Equipment
Chauvin & Arnoux;: Polymètre 24 [Equipment] ID = 1454723 933x588
Select picture or schematic to display from thumbnails on the right and click for download.
For model Polymètre 24 (Multimètre), Chauvin & Arnoux; Paris

Country:  France
Manufacturer / Brand:  Chauvin & Arnoux; Paris
Year: 1955 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 1 x 3 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Polymètre 24 - Chauvin & Arnoux; Paris
Material Bakelite case
Dimensions (WHD) 190 x 43 x 125 mm / 7.5 x 1.7 x 4.9 inch
Notes

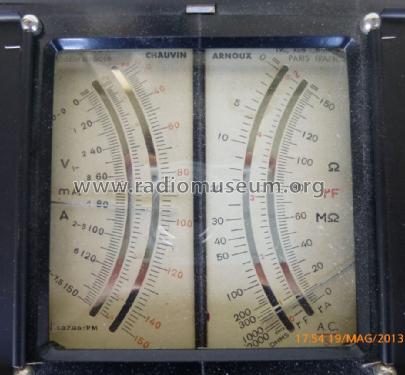

Multimètre S.G.D.G with double instrument. Vdc, Vac, Adc, Aac by one side, Ohm, uF by the other. Supply with 1x 2R10P 3V cell.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Massimo Follaro. See "Data change" for further contributors.



All listed radios etc. from Chauvin & Arnoux; Paris
Here you find 46 models, 43 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
