For model Super-Five old, Chelsea Radio Corp. (National); Chelsea, Boston (MA)

Country:  United States of America (USA)
Manufacturer / Brand:  Chelsea Radio Corp. (National); Chelsea, Boston (MA)
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A
schematic requested
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Super-Five [old] - Chelsea Radio Corp. National;

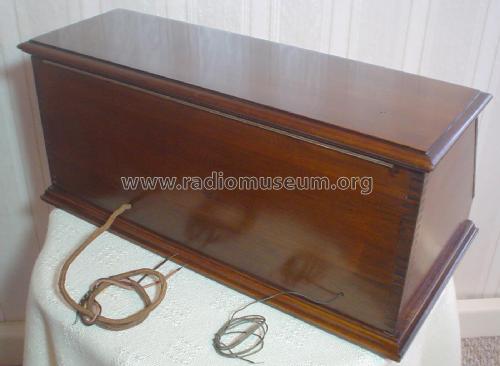

Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 534 x 230 x 274 mm / 21 x 9.1 x 10.8 inch
Notes Three dials (primary tuning control knobs)
Price in first year of sale 50.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (2) Radio Broadcast, Feb. 1926, p. 503


All listed radios etc. from Chelsea Radio Corp. (National); Chelsea, Boston (MA)
Here you find 29 models, 25 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
