Variable Grid Leak

Variable Grid Leak ; Chelsea Radio Corp. (ID = 1193937) Radio part Variable Grid Leak ; Chelsea Radio Corp. (ID = 1193938) Radio part
Variable Grid Leak ; Chelsea Radio Corp. (ID = 1193939) Radio part Variable Grid Leak ; Chelsea Radio Corp. (ID = 2382421) Radio part
Variable Grid Leak ; Chelsea Radio Corp. (ID = 2382422) Radio part Variable Grid Leak ; Chelsea Radio Corp. (ID = 2382424) Radio part
Variable Grid Leak ; Chelsea Radio Corp. (ID = 2382425) Radio part
Use red slider bar for more.
Variable Grid Leak ; Chelsea Radio Corp. (ID = 1193937) Radio part
Chelsea Radio Corp.: Variable Grid Leak [Radio part] ID = 1193937 933x776
Select picture or schematic to display from thumbnails on the right and click for download.
For model Variable Grid Leak, Chelsea Radio Corp. (National); Chelsea, Boston (MA):
Ebay Item number: 190655445881

Country:  United States of America (USA)
Manufacturer / Brand:  Chelsea Radio Corp. (National); Chelsea, Boston (MA)
Year: 1922 Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Variable Grid Leak - Chelsea Radio Corp. National;
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 3.5 x 2 x 3.5 inch / 89 x 51 x 89 mm

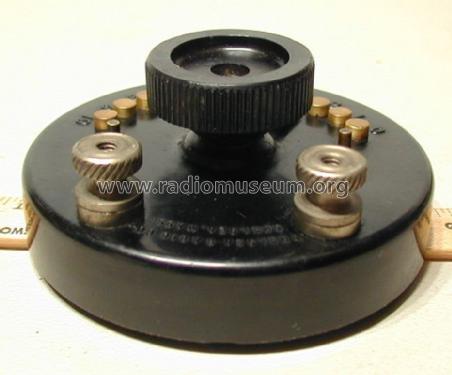

Notes 1920's breadboard radio part by Chelsea Radio Company of Chelsea Massachuates. It is a variable Grid Leak on a black bakelite base. It is 3 1/2 inches in diameter. Meant to be mounted on a horizontal bread board type of radio.

Model page created by Alan Larsen. See "Data change" for further contributors.
