Oscilador Mod. K24 Gerador de RF Modelo GS1

CIT - Centro de Instrução Técnica; LISBOA

  • Year
  • 1956–1958 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 78644

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Number of Transistors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Oscilador Mod. K24 Gerador de RF Modelo GS1 - CIT - Centro de Instrução
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 260 x 195 x 140 mm / 10.2 x 7.7 x 5.5 inch
  • Notes

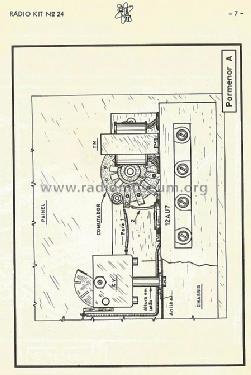

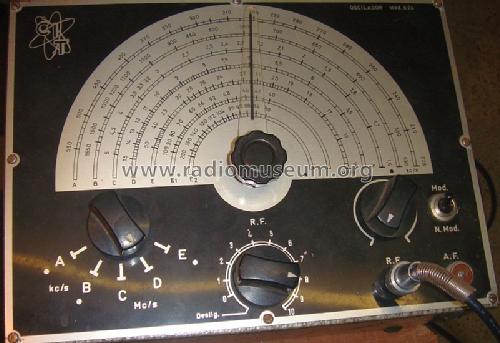

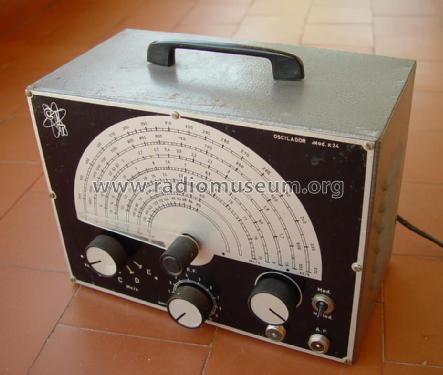

  • CIT Oscilador Mod. K24 - Gerador de R.F. modelo GS1, Rádio Kits No. 24A.

    Ranges:
    A: 220 - 550 kHz
    B: 530 - 1650 kHz
    C: 1,6 - 5 MHz,
    D: 5 - 15 MHz,
    E: 15 - 50 MHz

    Calibrated harmonicas:
    E1: 40 - 100 MHz
    E2: 80 - 200 MHz

    Technical details:
    RF output: 100mV
    AF output:  2 V
    Modulation: 1 kHz
    Rectifier: BY250

  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)

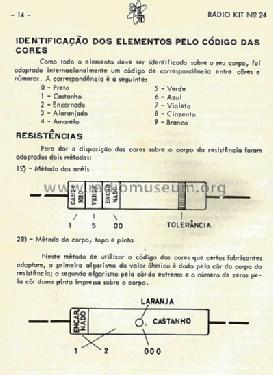

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Júlio Branco. See "Data change" for further contributors.
