Pocket LCD Colour TV ST555-1H

Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437220) Television Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437222) Television
Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437703) Television Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437704) Television

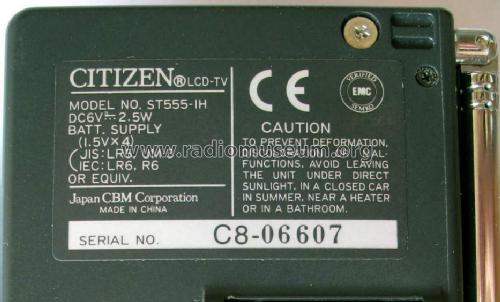

Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437705) Television Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437708) Television
Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437711) Television Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437714) Television
Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1969190) Television Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1969191) Television
Use red slider bar for more.
Pocket LCD Colour TV ST555-1H; Citizen Electronics (ID = 1437220) Television
Citizen Electronics: Pocket LCD Colour TV ST555-1H [Television] ID = 1437220 877x1397
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pocket LCD Colour TV ST555-1H, Citizen Electronics Co., Ltd., Fujiyoshida:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  Citizen Electronics Co., Ltd., Fujiyoshida
Year: 1990 ?? Category: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / AA 4 × 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Pocket LCD Colour TV ST555-1H - Citizen Electronics Co., Ltd.,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 82 x 128 x 35 mm / 3.2 x 5 x 1.4 inch
Notes

Screen: 5,6 cm.  No. of dots 62400. Pal-B/G, VHF 2-12, UHF 21-69.
AC adapter: BA-6011T (220 V), Car adapter: BC-604T (12 V).

Net weight (2.2 lb = 1 kg) 0.220 kg / 0 lb 7.8 oz (0.485 lb)
Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
