AM/FM Console S-400
Clairtone Sound Corporation Limited; Toronto
- Country
- Canada
- Manufacturer / Brand
- Clairtone Sound Corporation Limited; Toronto
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 308054

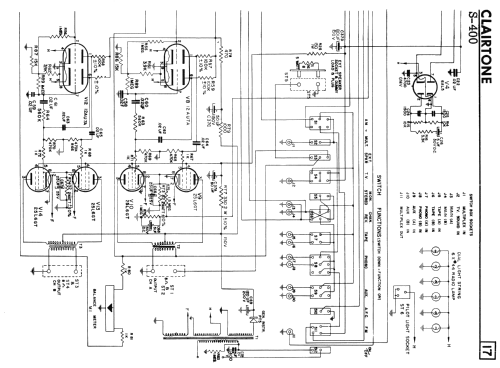

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- ECC85 6BA6 6BA6 6AL5 6BE6 6BA6 12AX7A 12AX7A 12AU7A 12AU7A 25L6GT 25L6GT 25L6GT 25L6GT
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 5 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM/FM Console S-400 - Clairtone Sound Corporation
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Clairtone model S-400 is a 14-tube AM/FM console radio with stereo amplifier and built-in record changer. Has provisions for optional FM stereo multiplex adapter.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Sup 56)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
