Kurzzeit-Messgerät MT1 EF86

Kurzzeit-Messgerät MT1; Clamann & Grahnert; (ID = 672525) Equipment Kurzzeit-Messgerät MT1; Clamann & Grahnert; (ID = 672527) Equipment
Kurzzeit-Messgerät MT1; Clamann & Grahnert; (ID = 672526) Equipment Kurzzeit-Messgerät MT1; Clamann & Grahnert; (ID = 672523) Equipment

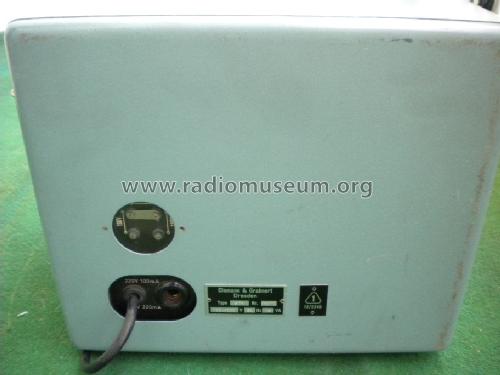

Kurzzeit-Messgerät MT1; Clamann & Grahnert; (ID = 672524) Equipment Kurzzeit-Messgerät MT1; Clamann & Grahnert; (ID = 672529) Equipment
Use red slider bar for more.
Kurzzeit-Messgerät MT1; Clamann & Grahnert; (ID = 672525) Equipment
Clamann & Grahnert;: Kurzzeit-Messgerät MT1 [Equipment] ID = 672525 912x684
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kurzzeit-Messgerät MT1 EF86, Clamann & Grahnert; Dresden

Country:  Germany
Manufacturer / Brand:  Clamann & Grahnert; Dresden
Year: 1965 ?? Category: Service- or Lab Equipment
Valves / Tubes 3: EF86 EF86 ECF82 STV85/10
schematic requested
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Kurzzeit-Messgerät MT1 [EF86] - Clamann & Grahnert; Dresden
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 275 x 240 x 200 mm / 10.8 x 9.4 x 7.9 inch
Notes Analoge Messung der Zeitdauer von Einzelimpulsen und des Abstandes zweier Impulse.
6 Messbereiche: 3ms-1s.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Collectors' prices

Model page created by Georg Nowak. See "Data change" for further contributors.
