• Country
• Spain

• Manufacturer / Brand
• Clarión; Barcelona

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230999

• Number of Tubes
• 6

• Valves / Tubes
• EF9 ECH3 EBC3 EL3 EM4 5U4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line (AC, UC or DC not known) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

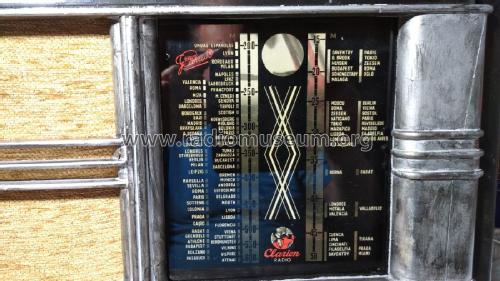

• Model: RA-42-C - Clarión; Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 535 x 330 x 250 mm / 21.1 x 13 x 9.8 inch

• Price in first year of sale
• 2,999.00 ESP

• Literature/Schematics (1)
• Anuncio La Vanguardia Española julio 1948

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
