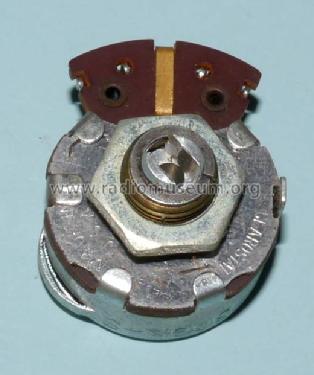

Control A47; Clarostat Mfg. Co. (ID = 2086617) Radio part Control A47; Clarostat Mfg. Co. (ID = 2224299) Radio part
Control A47; Clarostat Mfg. Co. (ID = 2224300) Radio part Control A47; Clarostat Mfg. Co. (ID = 2224301) Radio part
Use red slider bar for more.
Control A47; Clarostat Mfg. Co. (ID = 2086615) Radio part
Clarostat Mfg. Co.: Control A47 [Radio part] ID = 2086615 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Control A47, Clarostat Mfg. Co. Inc.; Brooklyn (NY); Dover (NH)

Country:  United States of America (USA)
Manufacturer / Brand:  Clarostat Mfg. Co. Inc.; Brooklyn (NY); Dover (NH)
Year: 1965 ?? Category: Radio part (not a module)
Wave bands - without
Details
Loudspeaker
Power out
from Radiomuseum.org Model: Control A47 - Clarostat Mfg. Co. Inc.;
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 1 x 1 x 1 inch / 25 x 25 x 25 mm
Notes

A47 Series Universal Control (5 MegOhm, 0.5 Watt). Available in a variety of standard values. Carbon Composition.

Uses SWE-12 "Ad-A-Switch" SPST or DPST

Includes the following "Pick-A-Shaft":

KSS-5. Knurled Split Shaft, 1/4" Diameter, 5" Long

KSS-4. Knurled Split Shaft, 1/4" Diameter, 3 " Long

FS-3. Flatted Shaft, 1/4" Diameter, 3" Long

RS-3/16.Round Shaft, 3/16" Diameter, 3" Long

RS-2. Round Shaft, 1/4" Diameter, 2" Long

FKS-1/2. Fine Slotted Shaft, 1/4" Diameter, 1/2" Long

FKS-1/4.  Fine Knurled Slotted Shaft 1/4" Diameter, 1/4" Long



Net weight (2.2 lb = 1 kg) 0 lb 1 oz (0.063 lb) / 0.028 kg
Mentioned in - - Manufacturers Literature (Clarostat Data Sheet # 75344201D)

Model page created by Jack Sorensen. See "Data change" for further contributors.
