Cadet 51

Cadet 51; Clarville CSF; Paris (ID = 652559) Radio
Cadet 51; Clarville CSF; Paris (ID = 2125313) Radio Cadet 51; Clarville CSF; Paris (ID = 258620) Radio

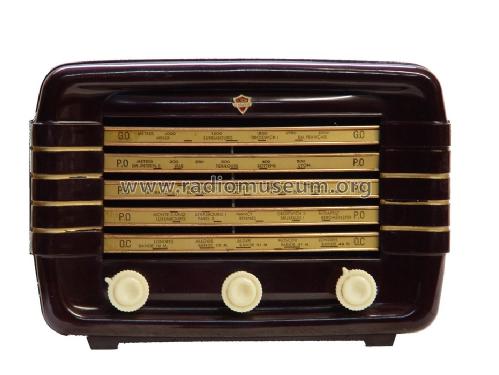

Cadet 51; Clarville CSF; Paris (ID = 902757) Radio Cadet 51; Clarville CSF; Paris (ID = 2546480) Radio
Use red slider bar for more.
Cadet 51; Clarville CSF; Paris (ID = 2125313) Radio
Clarville CSF; Paris: Cadet 51 [Radio] ID = 2125313 1202x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cadet 51, Clarville (CSF); Paris, Levallois-Perret

Country:  France
Manufacturer / Brand:  Clarville (CSF); Paris, Levallois-Perret
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Cadet 51 - Clarville CSF; Paris,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 220 x 150 x 130 mm / 8.7 x 5.9 x 5.1 inch
Notes

3 gammes d'ondes : OC de 16 à 50 m, PO de 185 à 580 m, GO de 1000 à 2000 m.

Coffret en matière plastique, plusieurs coloris.

Prix en 1951 : 12960 Fr.
Supplement coffret ivoire (1951) : 560 Fr.
Supplement sacoche avec poignée (1951) : 990 Fr.

Le schéma montre un bloc Eco à 4 gammes, ce qui est probablement erroné.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 12'400.00 FRF
External source of data Serge Laffont/Martin Renoth
Mentioned in -- Schematic
Literature/Schematics (1) -- Original prospect or advert
Literature/Schematics (2) - - Manufacturers Literature (Tarif 15.06.1950, 25.01.1951)
