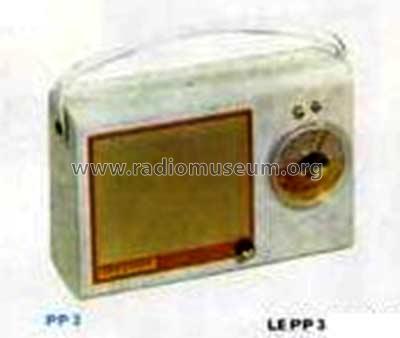

Tous Terrains PP3
Clarville (CSF); Paris, Levallois-Perret
- Country
- France
- Manufacturer / Brand
- Clarville (CSF); Paris, Levallois-Perret
- Year
- 1961/1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237719
Clarville Dépliant 1961
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 0.3 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Tous Terrains PP3 - Clarville CSF; Paris,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 150 x 65 mm / 9.1 x 5.9 x 2.6 inch
- Notes
-
2 gammes d'ondes: PO et GO. 7 transistors et 1 diode. Cadre incorporée. HP de 12,7 cm.
- Net weight (2.2 lb = 1 kg)
- 1.250 kg / 2 lb 12.1 oz (2.753 lb)
- Price in first year of sale
- 189.00 FRF
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original prospect or advert (Paris Match, Juin 1961)
