Classic 12 Transistor TR-124
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245491

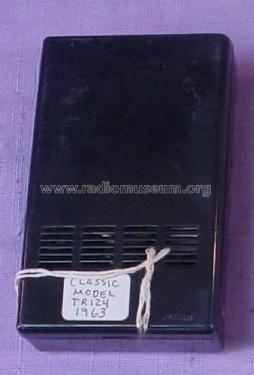

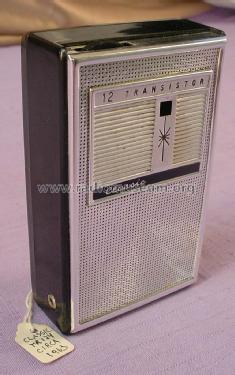

Picture Courtesy Of EBAY User: akachuck
Picture Courtesy Of EBAY User: akachuck
Picture Courtesy Of EBAY User: akachuck
Picture Courtesy Of EBAY User: akachuck
Picture Courtesy Of EBAY User: akachuck
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Classic 12 Transistor TR-124 - Unknown - CUSTOM BUILT: Japan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Pocket AM Radio Model Classic 12 Transistor TR-124.
Tuning Range 540 - 1605 kHz.
Earphone Jack.Externally similar to the models reported under Seavox 12 Transistor.
Note: This model appears to be identical to the Classic 12 Transistor TR-146. It is possible that the label on the TR-146 was a factory mistake.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
