• Country
• France

• Manufacturer / Brand
• Claude Paz & Visseaux (CPV), Paz & Silva; Paris, Boulogne

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 361603

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage

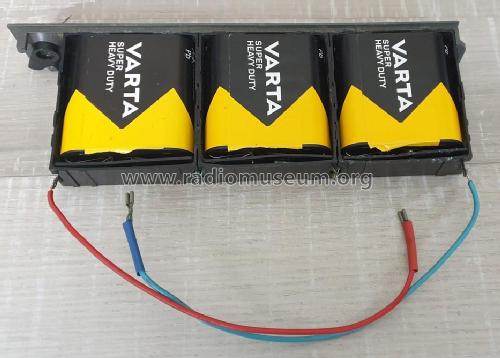

• Dry Batteries / 3R12: 3 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: TC6 - Claude Paz & Visseaux CPV, Paz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 315 x 190 x 90 mm / 12.4 x 7.5 x 3.5 inch

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Author
• Model page created by Daniel Jecker. See "Data change" for further contributors.

• Other Models

• Here you find 29 models, 25 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
