Capacity and Resistance Bridge CLB-60007

Capacity and Resistance Bridge CLB-60007; Clough-Brengle Co., (ID = 1081656) Equipment Capacity and Resistance Bridge CLB-60007; Clough-Brengle Co., (ID = 1081657) Equipment
Capacity and Resistance Bridge CLB-60007; Clough-Brengle Co., (ID = 1081660) Equipment
Use red slider bar for more.
Capacity and Resistance Bridge CLB-60007; Clough-Brengle Co., (ID = 1081656) Equipment

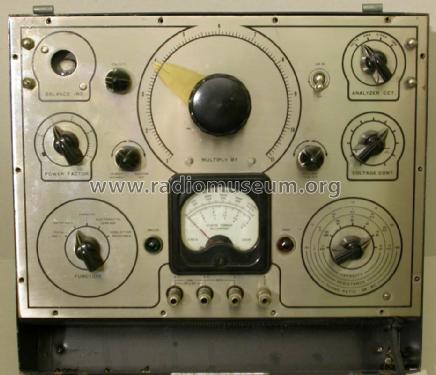

Clough-Brengle Co.,: Capacity and Resistance Bridge CLB-60007 [Equipment] ID = 1081656 933x801
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capacity and Resistance Bridge CLB-60007, Clough-Brengle Co., Chicago (IL):
Clough Brengle CLB-60007 Capacity and Resistance Bridge. It is similar and predates the Model 330. It includes a turns-ratio measurement like the 330 although that is not made obvious in its model name.

Country:  United States of America (USA)
Manufacturer / Brand:  Clough-Brengle Co., Chicago (IL)
Year: 1944 Category: Service- or Lab Equipment
Valves / Tubes 3: 6E5 6SJ7 5U4
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Capacity and Resistance Bridge CLB-60007 - Clough-Brengle Co., Chicago IL
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12 x 11 x 7 inch / 305 x 279 x 178 mm
Notes While this unit is made for the Navy Department- Bureau of Ships, it does not bear a MIL number. It is for general radio use, obviously a lab/service equipment for the shop. It is not built to military specifications; that is, no tube base clamps even on the vertically-mounted 5U4 rectifier, commercial non mil-spec tubes, component junctions in mid-air not on a barrier strips. This unit would suffer if really deployed on a ship. Not really a military equipment.
Net weight (2.2 lb = 1 kg) 19 lb (19 lb 0 oz) / 8.626 kg

Model page created by Hank Kaczmarski. See "Data change" for further contributors.
