Defiant All-Wave Superhet Receiver MSH937 AC/DC

Co-operative Wholesale Society (CWS) - Defiant; Manchester

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 331021
    • Brand: Defiant

 Technical Specifications

  • Number of Tubes
  • 6
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Defiant All-Wave Superhet Receiver MSH937 [AC/DC] - Co-operative Wholesale Society
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 25 x 38 x 12 inch / 635 x 965 x 305 mm
  • Notes

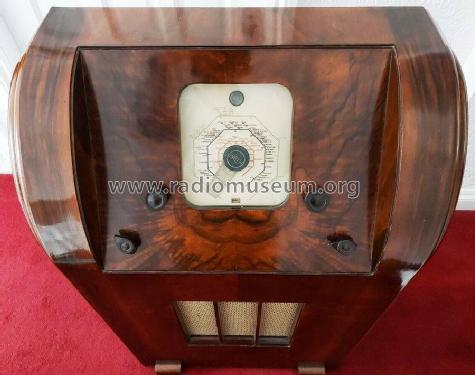

  • An AC/DC mains 3 band superhet console radio housed in a wooden cabinet. With a "Raolite" scale, magic eye, delayed AVC, sockets for extension loudspeaker and gramophone pickup. Price 16½ guineas.

    Wave Ranges:
    SW: 17- 52 Metres
    MW: 180 - 560 Metres
    LW: 850 - 2000 Metres

    See also the Defiant MSH937 AC version.

  • Price in first year of sale
  • 17.33 £
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Defiant prospect with specifications MSH937)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
